Android Studio Layout Relative Example

Onesinus Tamba Rabu, 21 Maret 2018

Here is an example of android studio simple relative layout

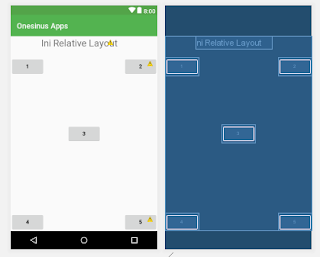

Design View

Text View

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent">

    <TextView

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="Ini Relative Layout"

       android:textSize="25dp"

       android:layout_marginLeft="80dp"

       android:id="@+id/tvTitle"/>

    <Button

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/str_btn1"

       android:layout_marginTop="21dp"

       android:layout_below="@+id/tvTitle"/>

    <Button

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/str_btn2"

       android:layout_marginTop="21dp"

       android:layout_below="@+id/tvTitle"

       android:layout_alignParentRight="true"/>

    <Button

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/str_btn3"

       android:layout_centerHorizontal="true"

       android:layout_centerVertical="true"/>

    <Button

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/str_btn4"

       android:layout_alignParentBottom="true"        />

    <Button

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/str_btn5"

       android:layout_alignParentBottom="true"

       android:layout_alignParentRight="true"        />

</RelativeLayout>

Android Studio Layout Relative Example

Onesinus Tamba Rabu, 21 Maret 2018

Android Studio Layout Linear Horizontal Example

Onesinus Tamba

Edit

Here is an example of android studio linear horizontal layout

Design View

Text View

<?xml version="1.0" encoding="utf-8"?><LinearLayout    xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical">

    <TextView

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:hint="@string/title_horizontal"

       android:textColor="@color/colorPrimary"

       android:textSize="26sp"

       android:layout_marginLeft="30dp"/>

    <LinearLayout

       android:layout_width="match_parent"

       android:layout_height="match_parent"

       android:orientation="horizontal">
        <Button

           android:layout_width="wrap_content"

           android:layout_height="match_parent"

           android:text="@string/str_btn1"/>

        <Button

           android:layout_width="wrap_content"

           android:layout_height="match_parent"

           android:text="@string/str_btn2"/>

        <Button

           android:layout_width="wrap_content"

           android:layout_height="match_parent"

           android:text="@string/str_btn3"/>

        <Button

           android:layout_width="wrap_content"

           android:layout_height="match_parent"

           android:text="@string/str_btn4"/>

        <Button

           android:layout_width="wrap_content"

           android:layout_height="match_parent"

           android:text="@string/str_btn5"/>

    </LinearLayout>
</LinearLayout>

Android Studio Layout Linear Horizontal Example

Onesinus Tamba

Android Studio Layout Linear Vertical Example

Onesinus Tamba

Edit

Here is an example of android studio simple layout (Linear)

Design View

Text View

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:app="http://schemas.android.com/apk/res-auto"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    tools:context="one.com.example.onesi.onesinus.MainActivity"    android:orientation="vertical">

    <TextView

       android:layout_width="wrap_content"

       android:layout_height="wrap_content"

       android:text="@string/title_linear"

       android:textSize="25sp"

       android:layout_marginLeft="50dp"        />

    <EditText

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="TextBox"/>

    <EditText

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="TextBox"/>

    <EditText

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="TextBox"/>

    <Button

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="@string/str_btn"/>

    <Button

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="@string/str_btn"/>

    <Button

       android:layout_width="match_parent"

       android:layout_height="wrap_content"

       android:text="@string/str_btn"/>

</LinearLayout>

Android Studio Layout Linear Vertical Example

Onesinus Tamba

PHP Operator

Onesinus Tamba

Edit

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title></title>
</head>
<body>
<?php
// Operator assignment
echo "============================================Operator Assignment=============================================";
echo " ";

echo '$var1 = 2;' . " ";
echo '$var2 = 3;' . " ";
echo '$var3 = 4;' . " ";
echo '$var3 += $var2;' . " ";

$var1 = 2;
$var2 = 3;
$var3 = 4;

echo "$var3" . " += " . " $var2 " . " = " . $var3 += $var2;
$var3 += $var2;

echo " ";

// Operator aritmatika
echo "============================================Operator Artimatika=============================================";
echo " ";

echo '$var_tambah = $var1 + $var2;' . " ";
echo "$var1 " . " + " . " $var2 " . " = " . $var_tambah = $var1 + $var2 . " ";

echo '$var_kurang = $var1 - $var2;' . " ";
echo "$var1 " . " - " . " $var2 " . " = " . $var_tambah = $var1 - $var2 . " ";

echo '$var_kali = $var1 * $var2;' . " ";
echo "$var1 " . " * " . " $var2 " . " = " . $var_tambah = $var1 * $var2 . " ";

echo '$var1 / $var2;' . " ";
echo "$var1 " . " / " . " $var2 " . " = " . $var_tambah = $var1 / $var2 . " ";

echo '$var1 % $var2;' . " ";
echo "$var1 " . " % " . " $var2 " . " = " . $var_tambah = $var1 % $var2 . " ";

$var_tambah = $var1 + $var2;
$var_kurang = $var1 - $var2;
$var_kali = $var1 * $var2;
$var_bagi = $var1 / $var2;
$var_sisa_bagi = $var1 % $var2;

/* echo $var_tambah . " ";
echo $var_kurang . " ";
echo $var_kali . " ";
echo $var_bagi . " ";
echo $var_sisa_bagi . " ";
*/
echo "==========================================Operator Relational / Comparation====================================";
echo " ";

// Operator relational / comparation
if ($var1 == $var2){
echo $var1 . " == " . $var2 . " = TRUE ";
}else{
echo $var1 . " == " . $var2 . " = FALSE ";
}

echo "$var1 != $var2 = "; var_dump($var1 != $var2); echo " ";
echo "$var1 < $var2 = "; var_dump($var1 < $var2); echo " ";
echo "$var1 > $var2 = "; var_dump($var1 > $var2); echo " ";
echo "$var1 <= $var2 = "; var_dump($var1 <= $var2); echo " ";
echo "$var1 >= $var2 = "; var_dump($var1 >= $var2); echo " ";

echo "==========================================Operator Logical ================================================";
echo " ";

// logical operator
echo '($var1 == 2 AND $var2 == 3) '; echo var_dump($var1 == 2 AND $var2 == 3) . " ";
echo '($var1 == 2 AND $var2 == 4) '; echo var_dump($var1 == 2 AND $var2 == 4) . " ";
echo " ";
echo '($var1 == 2 && $var2 == 3) '; echo var_dump($var1 == 2 && $var2 == 3) . " ";
echo '($var1 == 2 && $var2 == 4) '; echo var_dump($var1 == 2 && $var2 == 4) . " ";
echo " ";
echo '($var1 == 2 OR $var2 == 3) '; echo var_dump($var1 == 2 Or $var2 == 3) . " ";
echo '($var1 == 2 OR $var2 == 4) '; echo var_dump($var1 == 2 Or $var2 == 4) . " ";
echo " ";
echo '($var1 == 2 || $var2 == 3) '; echo var_dump($var1 == 2 || $var2 == 3) . " ";
echo '($var1 == 2 || $var2 == 4) '; echo var_dump($var1 == 2 || $var2 == 4) . " ";
echo " ";
echo '($var1 == 2 XOR $var2 == 3) '; echo var_dump($var1 == 2 XOR $var2 == 3) . " ";
echo '($var1 == 2 XOR $var2 == 4) '; echo var_dump($var1 == 2 XOR $var2 == 4) . " ";
echo " ";
echo '(!$var1 == 2 XOR $var2 == 3) '; echo var_dump(!$var1 == 2 XOR $var2 == 3) . " ";
echo '($var1 == 2 XOR $var2 == 4) '; echo var_dump($var1 == 2 XOR $var2 == 4) . " ";

?>
</body>
</html>

PHP Operator

Onesinus Tamba

[DASAR PHP] Operator Aritmatika

Onesinus Tamba Selasa, 20 Maret 2018

Edit

Berikut adalah contoh penggunaan operator aritmatika didalam bahasa pemrograman PHP

<?php
 $var1 = 2; // deklarasi variable dengan nama var1 dengan nilai 2
 $var2 = 3; // deklarasi variable dengan nama var2 dengan nilai 3

 $var_tambah = $var1 + $var2; // membuat variable untuk menjumlahkan $var1 dan $var2
 $var_kurang = $var1 - $var2;// membuat variable untuk mengurangi $var1 dan $var2
 $var_kali = $var1 * $var2; // // membuat variable untuk mengkalikan $var1 dan $var2
 $var_bagi = $var1 / $var2; // membuat variable untuk membagi $var1 dan $var2
 $var_sisa_bagi = $var1 % $var2; // membuat variable untuk mendapat sisa dari pembagian $var1 dan $var2

 // menampilkan hasil
 echo $var_tambah . " ";
 echo $var_kurang . " ";
 echo $var_kali . " ";
 echo $var_bagi . " ";
 echo $var_sisa_bagi;
 ?>
